Homework2: Collision Detection


Implement collision detection for several complex objects moving with different velocities and rotations. Provide simple motion response upon colliding. Optimize for the case when objects are all equal size.

Assignment text:
(6 pt) Problem A: Implementation
Write a program to detect collisions among many sphere-like objects of different sizes flying inside a confined region (e.g. a cube, a table with boundary, etc.); Each object is given an initial random velocity and angular velocity. The velocity stays the same unless an object hits an obstacle (e.g. a wall or another object), in which case a component of the velocity should be flipped so that the object stays within the confinement. State your assumptions about the objects! You may wish to reuse and modify the source code available at: http://www.cs.unc.edu/~geom/collide/packages.shtml

(9pt) Problem B: Analysis
Analyze performance of your algorithm (or implementation) in different situations.
Change the following parameters and measure computation time:

  • Number of objects (1~50)
  • Complexity of objects (The number of polygons for each object.  Try at least 3 different data sets)
  • Sizes of objects (The relative size of each object w.r.t.. the extension of the bounding cube.)
Your algorithm (implementation) should exhibit different characteristics to the variation of these parameters. Present data in tables and graphs, and explain the differences in performance.

(10pt) Problem C: Varying Parameters
Same as Problem A, except the objects have the same size. What would you do differently? Show a simple prototype implementation to compare and contrast the performance of two different algorithms (implementation).

What I did:

I have created a small program.
download the program (you need to put qt-mt230nc.dll in the same directory)

It requires Windows (2000?), openGL, GLVU (to compile), PQP, and the QT runtime dll (included).

You can view the source code. All the simulation code is contained in the main.cpp. The other files are used for the user interface.

I have implemented a simple system using PQP (Proximity Query Package). PQP uses Object Oriented Bounding Boxes (OOBB) for collision detection of arbitrary objects. The objects I used came from Nate Robin's OpenGL tutors. They are complex, all of them convex and some of them actually are separate objects.

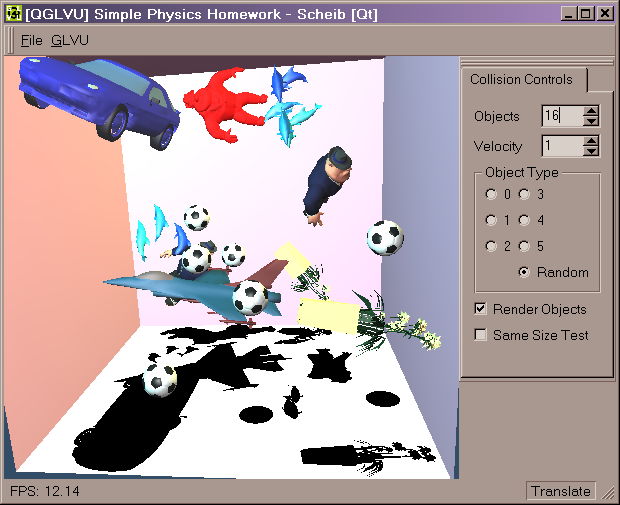

The user interface shown in this screen shot:

Objects flash red when they are in collision, the model of Al Capone in the top center is colliding with the rear wall. The objects ranged from 1000 to 7000 triangles.


I have gathered timing for different objects, scale of objects, and number of objects. These can be seen in this graph:

White and black represent objects with 1692 and 7625 triangles, respectively.

Small signifies that the object scale was extremely small compared to the environment. In this situation, thousands of objects can fit within the space and rarely collide with each other.

Medium signifies objects of the size seen in the screen shot.

Large signifies objects scaled such that they are always in collision with another object.

These timings are also in this table:

Num. Obj. 1k, small 7k, small 1k, medium 7k, medium 1k, large 7k, large
400 0.25 0.26
350 0.19 0.20
300 0.14 0.16 0.33
250 0.10 0.11 0.23
200 0.07 0.07 0.14
150 0.04 0.04 0.09 0.53
100 0.02 0.02 0.04 0.20
50  0.01 0.01 0.01 0.05 0.50
40  0.01 0.01 0.01 0.01 0.31
30  0.18 0.69
20  0.09 0.31
10  0.02 0.08
0.01 0.01

The most significant contribution to computation time is that of object scale. When objects are of a smaller relative scale, they rarely are in collision. Thus, the collision detection code must only infrequently traverse down the bounding box hierarchy. At these scales, the complexity of the object has little influence on computation time.

The second most influential metric is the number of objects in the system. A pair wise test must be performed for all objects during collision detection.

Lastly, but significant during collisions, the complexity of an object affects the computation time.

Same Size Objects:

If we assume objects are all the same size, we can perform faster rejection on object collision tests. Specifically, we can avoid the pair wise test. Knowing the maximum object size, we can partition space and only check for object collisions for objects sharing a cell.

One simple way to do this is to make a grid where each cell is only slightly larger than an object. Then, for each object, the cell the center resides in is marked as containing that object. Then, for each cell, every object within a cell is tested for collision with objects in that and any adjacent cell. (objects may overlap cell boundaries, but no more than one.) When doing this, care is taken to only check an object pair once.

Why do this? A pair wise test has quadratic complexity. It requires N(N-1)/2 object-object tests. However, traversing the spatial partitioning is linear. Within each cell a pair wise test is performed, however this is on a very small number of objects (unless the space is very crowded).

Results are positive. As can be seen in the graph, the spatial subdivision performs much better -- closer to linear than the pair wise implementation.
